Do it with style.
Electric assist will enable you to get back outside and enjoy yourself again.
I will work with you to customize a solution

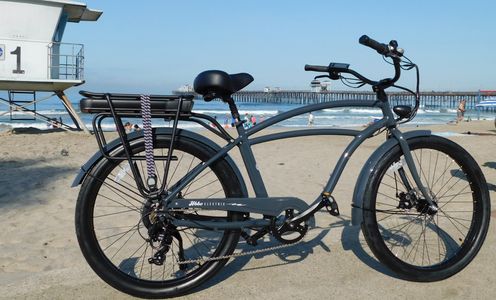

• 48 VOLT 13AH REMOVABLE SAMSUNG LITHIUM ION BATTERY
• 500 WATT (750 PEAK) BRUSHLESS GEARED MOTOR
• 5 LEVEL PEDAL ASSIST & THUMB THROTTLE
• SPEEDS UP TO 23 MPH
• 25 MILE RANGE
• 5-6 HOUR CHARGE TIME
• LCD DISPLAY WITH USB CHARGER
• MPH, BATTERY RANGE AND ODOMETER DISPLAY
• INTEGRATED FRONT AND REAR SAFETY LIGHTS
• SHIMANO 7 SPEED DERAILLEUR
• REAR LUGGAGE RACK
• FRONT & REAR TEKTRO DISK BRAKES
• STYLE, QUALITY AND VALUE….
• 48 VOLT 10.4 AH REMOVABLE SAMSUNG LITHIUM ION BATTERY
• 500 WATT (750 PEAK) BRUSHLESS GEARED MOTOR
• 5 LEVEL PEDAL ASSIST & THUMB THROTTLE
• SPEEDS UP TO 23 MPH
• 25 MILE RANGE
• 5-6 HOUR CHARGE TIME
• LCD DISPLAY WITH USB CHARGER
• MPH, BATTERY RANGE AND ODOMETER DISPLAY
• INTEGRATED FRONT AND REAR SAFETY LIGHTS
• SHIMANO 7 SPEED DERAILLEUR
• REAR LUGGAGE RACK
• FRONT & REAR TEKTRO DISK BRAKES
• STYLE, QUALITY AND VALUE….
.• 48 VOLT 14AH REMOVABLE SAMSUNG LITHIUM ION BATTERY
• 500 WATT (750 PEAK) BRUSHLESS GEARED MOTOR
• 5 LEVEL PEDAL ASSIST & THUMB THROTTLE
• SPEEDS UP TO 23 MPH
• 25 MILE RANGE
• 5-6 HOUR CHARGE TIME
• LCD DISPLAY WITH USB CHARGER
• MPH, BATTERY RANGE AND ODOMETER DISPLAY
• INTEGRATED FRONT AND REAR SAFETY LIGHTS
• SHIMANO 7 SPEED DERAILLEUR
• REAR LUGGAGE RACK
• FRONT & REAR TEKTRO DISK BRAKES
• STYLE, QUALITY AND VALUE….
With our new Ananda mid-drive system, the Pilot feels natural and balanced while cruising the boardwalk or on evening neighborhood rides with the family. An integrated but removable battery hides in the frame, and the thumb throttle means you only have to pedal on your terms. Available in a variety of eye-catching colors, the Pilot will get you there in comfort and look good doing it.

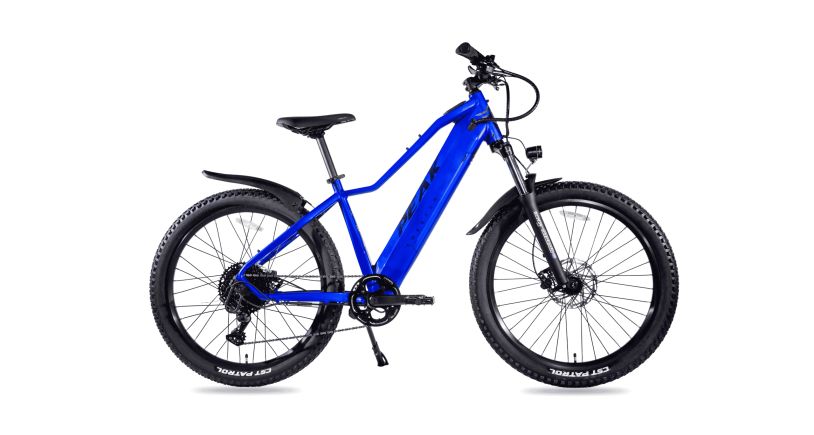

Our first mid-drive mountain bike is here, and it’s packed with new components and features combining everyday comfort with intuitive and balanced mid-drive technology. Whether you’re a trail crusher, dirt road rider, or prefer the comfort and style of a mountain bike on the street, the Vertex is sure to please.
Model:
Magnum Ranger
Body Position:
Upright, Upright Relaxed
Warranty:
1 Year Comprehensive
Max Load:
265lbs
Motor Type:
Das Kit 750w Rear Geared Hub Motor
Motor Output:
48v 750w
Battery Voltage / Amp Hours / Watt Hours:
48v / 21ah / With Usb Port
Battery Chemistry:
Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time:
6.5 Hrs
Estimated Min And Max Range:
25 To 75 Miles (Depending On Riding Style, Terrain, Rider Weight And Peddle Assist Level.)
Display Type:
Das-kit C7, Fixed, Backlit, Monochrome Lcd
Display Records:
Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Modes:
Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Top Speed:
25mph With Pedal Assist, 20mph Throttle Only
Lights:
Independent Front Headlight, Independent Rear Light
Total Weight:
80lbs
Battery Weight:
9lbs
Frame Type:
High Step
Frame Material:
6061 Aluminum Alloy
Fork Details:
Rst Guide Spring Suspension, 80mm Travel With Lockout
Attachment Points:
Rear Rack Bosses, Fender Bosses
Gearing Details:
Shimano, Acera Derailleur, 8 Speed
Shifter Details:
Shimano Grip Revoshift 8 Speed, 11-32t
Cranks:
Prowheel Ounce 48t Chainring With Alloy Guard, 170mm, Square Taper Bottom Bracket
Pedals:
Wellgo Alloy Platform Vb087
Stem:
Promax, Tool-free Adjustable, 100mm Length
Brake Details:
Tektro Auriga Hydraulic Disc Brakes With Motor Inhibitors 180mm Front, 160mm Rear
Grips:
Selle Royal Brown
Saddle:
Selle Royal Cruiser With Gel And Dual Spring Suspension
Seatpost / Seatpost Dimensions:
Promax, Sp-252 / 30.4 X 300mm
Fenders:
Front And Rear
Rims:
Aluminum Alloy, Double Walled, Oval Cut Outs, 81mm Outer Diameter, 36 Hole
Tires:
Chao Yang H-5193
Wheel Size:
26″ X 4.0”
Max Seat Height39″Min Seat Height35.25″Seat Tube19.75″Standover Height29″Handlebar Height51″Reach25.5″Total Length78.5″Wheelbase54″
Model:
Magnum Metro
Body Position:
Upright
Electric Bike Class:
Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty:
1 Year Comprehensive
Max Load:
265lbs
Motor Type:
Das-kit R4 Rear Geared Hub Motor
Motor Output:
48v 500w
Battery Voltage / Amp Hours / Watt Hours:
48v / 13ah / 624wh / With Usb Port
Battery Chemistry:
Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time:
6.5 Hrs
Estimated Min And Max Range:
30 To 60 Miles (Depending On Riding Style, Terrain, Rider Weight And Peddle Assist Level.)
Display Type:
Das-kit C7, Fixed, Backlit, Monochrome Lcd
Display Records:
Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Modes:
Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Top Speed:
25mph With Pedal Assist, 20mph Throttle Only
Lights:
Integrated Front Headlight, Independent Rear Light
Total Weight:
55lbs
Battery Weight:
9lbs
Frame Type:
Step-thru
Frame Material:
6061 Aluminum Alloy
Fork Details:
Sr Suntour Nex Spring Suspension With Preload Adjustment, 63mm Travel
Attachment Points:
Rear Rack Bosses, Fender Bosses, Bottle Cage Bosses
Gearing Details:
Shimano, Acera M360 Derailleur, 8 Speed
Shifter Details:
Shimano Altus M310 8 Speed Trigger Shifter
Cranks:
Prowheel 48t Chainring With Alloy Guard, 170mm, Square Taper Bottom Bracket
Pedals:
Wellgo Aluminum Platform, B087
Stem:
Promax, Ma-579, Toovl-free Adjustable,100mm Length
Brake Details:
Tektro Auriga Hydraulic Disc Brakes With Motor Inhibitors, 180 Mm Rotors
Grips:
Selle Royal Brown
Saddle:
Selle Royal Polygel
Seatpost / Seatpost Dimensions:
Promax 40mm Suspension, 27.2 X 340mm
Fenders:
Front And Rear
Rims:
Aluminum Alloy, Double Walled, 36 Hole
Tires:
Schwalbe Big Ben, Kevlar Lined, Reflective Sidewall Stripe / Schrader Valve
Wheel Size:
26 In (26″ X 2.15″)
Model:
Magnum Premium Low Step
Body Position:
Upright
Electric Bike Class:
Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty:
1 Year Comprehensive
Max Load:
242lbs
ELECTRONIC DETAILS:
Motor Brand
Bafang
Motor Type
Geared Rear Hub
Motor Nominal Output
500 Watts
Motor Peak Output
750 Watts
Battery Brand
N/A
Battery Voltage
48V
Battery Ah
15Ah
Battery Wh
720Wh
Battery Chemistry
Li-NMC
Battery Charge Time (from empty)
7.5 Hours
Minimum Range
30 Miles (48 Kilometers)
Maximum Range
50 miles (80 Kilometers)
Display Type
Magnum Branded VeloFox, 3.5" Diagonal, Fixed, Monochrome, Backlit LCD
Display Readouts
Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
Display Accessories
Drive Mode
Cadence Sensing Pedal Assist, Thumb Throttle (Sealed 12 Magnet Cadence Sensor)
Top Speed
Up to 25 mph (40 km) with pedal assist, up to 20 mph with throttle only
Lights
Integrated Front Light w/Horn (20 Lux), Integrated Rear Light (20 Lux) Motor Type:
8fun Rear-mounted Geared Hub 48v 500w
Model:
Magnum Navigator
*Past generation was named Navigator, current generation is named the Navigator X
*Navigator X Specs shown below, biggest changes are the 26″ tire (instead of a 27.5″) and a 14Ah battery (instead of a 12Ah).
Body Position:
Upright
Electric Bike Class:
Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty:
1 Year Comprehensive
Motor Type:
Das-kit Rear Geared Hub Motor
Motor Output:
48V 500W
Battery Voltage / Amp Hours / Watt Hours:
48V / 14Ah / 672Wh
Battery Chemistry:
Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time:
6 Hrs
Estimated Min And Max Range:
25 To 55 Miles (Depending On Riding Style, Terrain, Rider Weight And Pedal Assist Level.)
Display Type:
Das-Kit Fixed, Backlit, Monochrome Lcd
Display Records:
Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Modes:
Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Top Speed:
25mph With Pedal Assist, 20mph Throttle Only
Lights:
Integrated front and rear light
Total Weight:
60lbs
Battery Weight:
8lbs
Frame Type:
Low step
Frame Material:
Aluminum
Fork Details:
SR Suntour NEX ATB 26”
Gearing Details:
Shimano 8 Speed
Shifter Details:
Shimano 8 Speed
Pedals:
Wellgo Platform
Stem:
Promax Tool-free Adjustable
Brake Details:
Tektro Hydraulic Disc Brakes
Grips:
Ergo Brown Leather
Saddle:
Selle Royal Brown Freeway
Seatpost / Seatpost Dimensions:
Promax Aluminum with suspension, 27.2 X 350mm
Fenders:
Front And Rear
Rims:
26in x 30mm
Tires:
CST 26in x 2.25in
Wheel Size:
26″
Description Model Magnum Cosmo Body Position: Upright Warranty: One Year Limited Warranty Max Load: 275lbs ELECTRONIC DETAILS Motor Type: Rear Geared Hub Motor Motor Output: 48 Volts 500 Watts Battery Voltage / Amp Hours / Watt Hours: 48V / 10Ah / 480Wh Battery Chemistry: Lithium Nickel Cobalt Manganese (Li-ncm) Estimated Charge Time: 5 Hours Estimated Min And Max Range: 30 – 55 Miles (Depending On Riding Style, Terrain, Rider Weight, and Pedal Assist Level.) Display Type: LCD Display Display Readouts: Battery Level (4 Bars), Speed Kilometers Only, Assist Level (0-3), Odometer, Trip Distance Drive Modes: Pedal Assist, Twist Throttle Top Speed: 25mph Lights: Integrated Front and Rear Light controlled by the display (power on/off) / Rear brake light activated when braking. BICYCLE DETAILS Frame Type: Low Step Fork Details: SR Suntour NVX Suspension Fork with lockout and preload adjustment Gearing Details: Shimano Tourney Derailleur 6 Speed Shifter Details: Shimano 7 Speed Cranks: Lunfeng 52T*170mm Pedals: Feimin City Style Stem: 25.4mm Adjustable Brake Details: Artek Mechanical Disc Brakes Saddle: QF Saddle Black Grips: Black Faux leather with stitching Seatpost: 27.2*300mm Fenders: Aluminum Alloy front and rear fenders Rack: Rear carrier rack Rims: 26″ Tires: Innova 26″ x 2.1″ Black
Model:

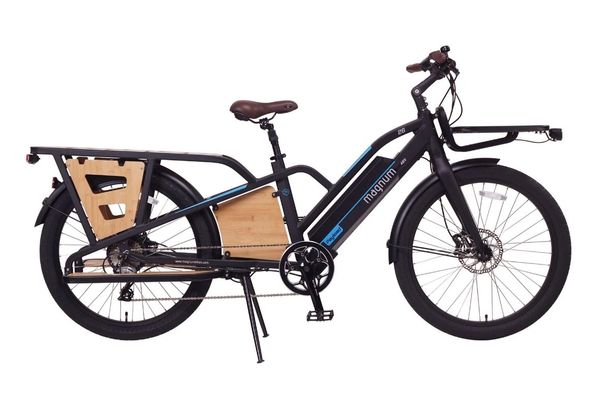

Magnum Payload Cargo E-Bike
Body Position:
Upright
Electric Bike Class:
Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty:
1 Year Comprehensive
Max Load:
350lbs
Motor Type:
Das-kit Rear Geared Hub Motor
Motor Output:
48v 500w
Battery Voltage / Amp Hours / Watt Hours:
48v / 18 ah
Battery Chemistry:
Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time:
6 Hrs
Estimated Min And Max Range:
25 To 55 Miles (Depending On Riding Style, Terrain, Rider Weight And Peddle Assist Level.)
Display Type:
Das-Kit C7 Fixed, Backlit, Monochrome Lcd
Display Records:
Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Modes:
Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Top Speed:
25mph With Pedal Assist, 20mph Throttle Only
Lights:
Front and rear light
Frame Type:
Step-thru Cargo
Frame Material:
6061 Aluminum Alloy
Fork Details:
Rigid Alloy Fork
Gearing Details:
Shimano, Acera RDM360 Derailleur, 8 Speed
Shifter Details:
Shimano Altus M310 8 Speed
Cranks:
Prowheel 165mm 48T
Pedals:
Wellgo
Stem:
Promax MA-579
Brake Details:
Tektro Hydraulic Disc Brakes 180mm Front Rotor, 160mm Rear Rotor
Grips:
Selle Royal
Saddle:
Selle Royal Brown
Seatpost / Seatpost Dimensions:
Promax Aluminum with suspension, 27.2 X 350mm
Fenders:
Front And Rear
Tires:
CST
Wheel Size:
26″ X 1.75″
Comming Soon
Model:
Magnum Nomad
Body Position:
Upright
Rider Recommendations:
This is a large frame with large wheels/tires. Suggested for riders
Electric Bike Class:
Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty:
1 Year Comprehensive
Max Load:
260
Motor Type:
Bafang Rear Hub
Motor Output:
48v 750W Nominal
Battery Voltage / Amp Hours / Watt Hours:
48v / 17.5Ah / 840Wh
Estimated Charge Time:
6 – 7 Hrs
Estimated Min And Max Range:
35-65 Miles (Depending On Riding Style, Terrain, Rider Weight and Pedal Assist Level.)
Display Type:
LCD Display
Display Readouts:
Speed, Trip, Trip Time, Time, ODO, Power output, PAS, Battery Level
Drive Modes:
Cadence Sensing Pedal Assist, Twist Throttle
Top Speed:
Up to 25mph With Pedal Assist, 20mph Throttle Only
Lights:
Front and Rear Integrated
Total Weight:
74lbs
Battery Weight:
9lbs
Frame Type:
Low Step with semi-integrated battery
Frame Material:
Aluminum
Fork Details:
Suspension Fork with Lockout
Gearing Details:
7 Speed Shimano
Shifter Details:
7 Speed Shimano
Cranks:
52T 170mm
Pedals:
Welgo Platform
Stem / Handlebar:
Promax Adjustable
Brake Details:
Hydraulic Disc Brakes
Grips:
Leather Ergo
Saddle:
Comfort
Seatpost / Seatpost Dimensions:
Promax 30.4mm
Fenders:
Front and Rear
Rims:
26 x 80mm 36h
Tires:
26″ x 4″
Wheel Size:
26″ X 4″
Hydraulic brakes
48 volt
20 Ah battery
750 watts motor
Hydraulic Brakes
48 volt
15 Ah battery
500 watt motor
Model:
Magnum Cruiser
Body Position:
Upright, Upright Relaxed
Electric Bike Class:
Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty:
1 Year Comprehensive
Max Load:
265lbs
Motor Type:
Das-kit R4 Rear Geared Hub Motor
Motor Output:
48v 500w
Battery Voltage / Amp Hours / Watt Hours:
48v / 13ah / 624wh / With Usb Port
Battery Chemistry:
Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time:
6.5 Hrs
Estimated Min And Max Range:
30 To 60 Miles (Depending On Riding Style, Terrain, Rider Weight And Pedal Assist Level.)
Display Type:
Das-kit C7, Fixed, Backlit, Monochrome Lcd
Display Records:
Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Modes:
Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Top Speed:
25mph With Pedal Assist, 20mph Throttle Only
Lights:
Independent Front Headlight, Independent Rear Light
Total Weight:
59lbs
Battery Weight:
9lbs
Frame Type:
High Step
Frame Material:
6061 Aluminum Alloy
Fork Details:
Rst Neon-tnl, Adjustable Spring Suspension With Lockout
Attachment Points:
Rear Rack Bosses, Fender Bosses
Gearing Details:
Shimano, Acera M360 Derailleur, 8 Speed
Shifter Details:
Shimano Grip Revoshift 8 Speed
Cranks:
Prowheel 48t Chainring With Alloy Guard, 170mm, Square Taper Bottom Bracket
Pedals:
Wellgo Aluminum Platform, B087
Stem:
Promax, Mq-579, Tool-free Adjustable, 100mm Length
Brake Details:
Tektro Hydraulic Disc Brakes With Motor Inhibitors
Grips:
Selle Royal Brown
Saddle:
Selle Royal Cruiser With Gel And Dual Spring Suspension
Seatpost / Seatpost Dimensions:
Promax, Sp-252 / 30.4 X 300mm
Fenders:
Front And Rear
Rims:
Aluminum Alloy, Double Walled, 36 Hole
Tires:
Schwalbe Big Ben, Reflective Sidewall Stripe, Kevlar Lined, Schrader Valve
Wheel Size:
26″ X 2.15″, 26in (66.04cm)
*Some assembly required.H
X-Class was designed to be a fast e-bike from day 1. Now thanks to 52V battery system and using massive 35A controller now X-Class 52V is even faster and more powerful.
Did we mention about 1000W motor which is capable of delivering 2000W peak output? $2399.00. Sale price $2199.00 Limited to stock on hand
X-Class was designed to be a fast e-bike from day 1. Now thanks to 52V battery system and using massive 35A controller now X-Class 52V is even faster and more powerful.
Did we mention about 1000W motor which is capable of delivering 2000W peak output?
Geared Hub Motors
Miles per Charge
2 Li-ion battery
For maximum comfort
48V 14.4Ah, 750W Class 2 with Throttle Assist.
Top speed 25 mph
5-level pedal assist, Walk mode, USB charging.
Frame with Fully-integrated Battery Design.
Hydraulic Disc Brakes. Shimano 8-speed.
UL 2271 Certified Battery included.
48V 14.4Ah, 750W Class 2 with Throttle Assist.
Top speed 25 mph
5-level pedal assist, Walk mode, USB charging.
Frame with Fully-integrated Battery Design.
Hydraulic Disc Brakes. Shimano 8-speed.
UL 2271 Certified Battery included.
● 48V 14.4Ah, 500W Class 2 with Throttle Assist.
● Top speed 25 mph.
● 5-level pedal assist, Walk mode, USB charging.
● Frame with Fully-integrated Battery Design.
● Hydraulic Disc Brakes. Shimano 7-speed.
● UL 2271 Certified Battery included.
● 48V 14.4Ah, 500W Class 2 with Throttle Assist.
● Top speed 25 mph.
● 5-level pedal assist, Walk mode, USB charging.
● Frame with Fully-integrated Battery Design.
● Hydraulic Disc Brakes. Shimano 7-speed.
● UL 2271 Certified Battery included.
500 watt Dapu geared hub motor, integrated headlight, taillight and brakelight. 48 volt 14ah battery. $3499
Ariel Rider electric bikes
Magnum electric bikes
HBBC Electric Bikes
E-Bike kits
Oside custom ebikes
Converted to an electric vehicle. 88KW Netgain Hyper 9 motor with Tesla batteries
We love our customers, so feel free to make an appointment for a test ride.
3052 Industry St. Suite 106, Oceanside, California 92054, United States
Tuesday - Friday: 11 AM to 5 PM
Saturday: 9 am- 4PM
Sunday and Monday: Closed
Open anytime by appointment
Walk ins welcome
Instagram @Oside_erides
